LTS 16‑Channel 8K Platinum NVR – LTN8916D‑P16N

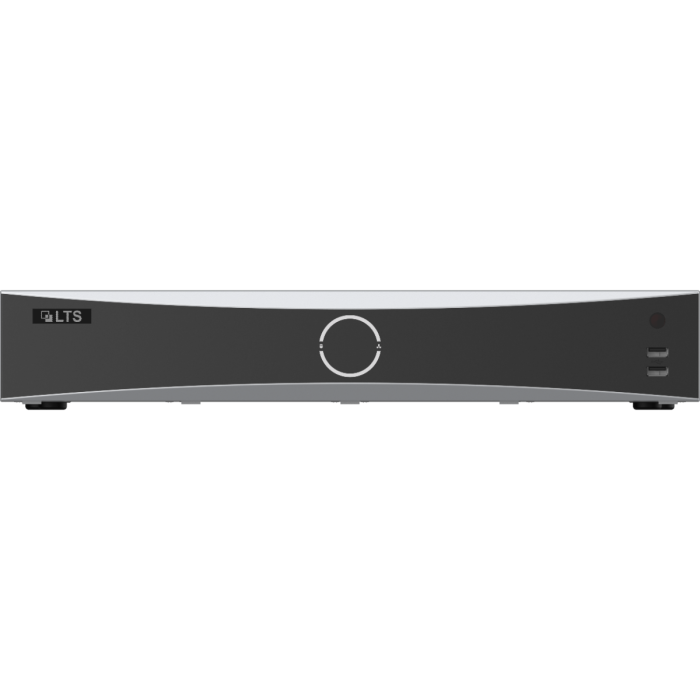

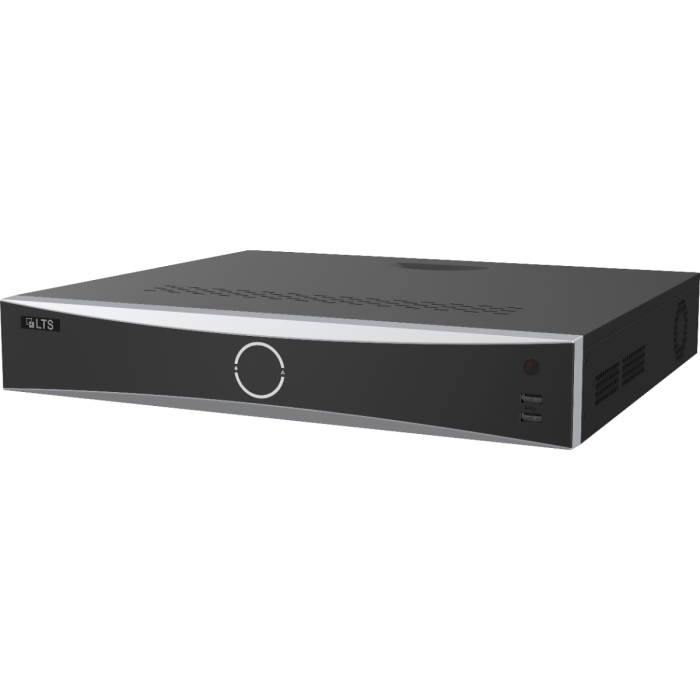

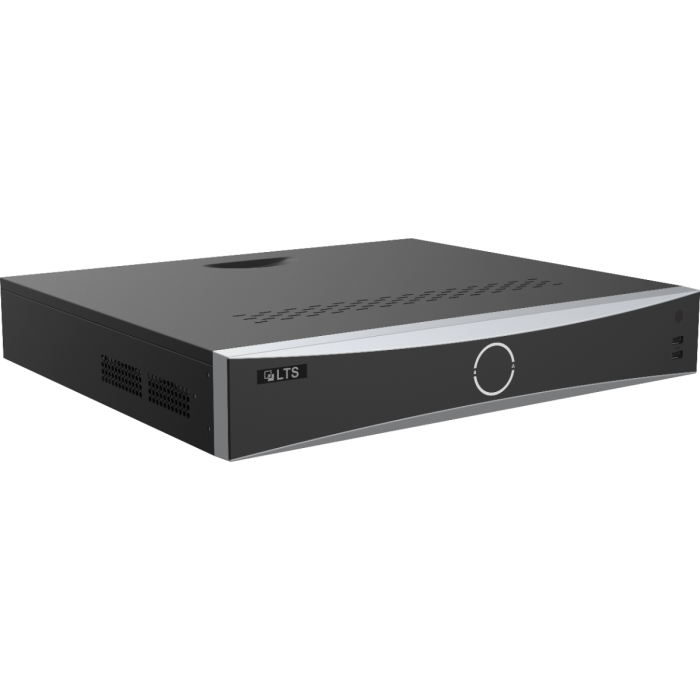

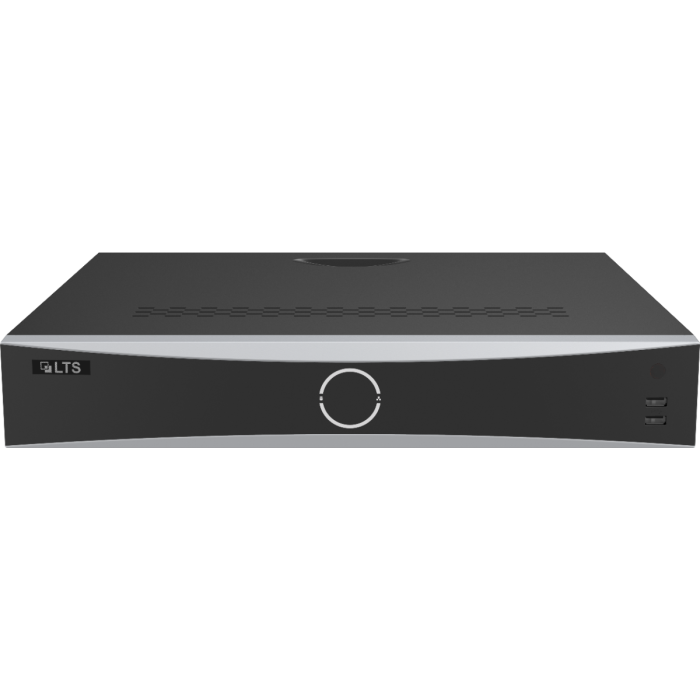

  • Front and rear view of LTS LTN8916D‑N 16‑Channel Platinum 8K NVR with HDMI, SATA, and network ports
  • Front and rear view of LTS LTN8916D‑N 16‑Channel Platinum 8K NVR with HDMI, SATA, and network ports
  • Front and rear view of LTS LTN8916D‑N 16‑Channel Platinum 8K NVR with HDMI, SATA, and network ports
  • Front and rear view of LTS LTN8916D‑N 16‑Channel Platinum 8K NVR with HDMI, SATA, and network ports
1 4
Brand: LTS
Part Number: LTN8916D‑P16N
$761.00 USD
Shipping calculated at checkout.
4 interest-free installments, or from 190.25 $/mo with shopPay Check your purchasing power
Los gastos de envío se calculan en la pantalla de pago.

The LTS LTN8916D‑P16N is a high-performance NVR designed for expansive surveillance installations. It supports up to 16 IP cameras at ultra-high 32 MP recording, and features H.265+ compression to optimize storage by up to 75%.

With 16 integrated PoE ports, installation is simplified—cameras connect with power and data over one cable. It includes four SATA bays, accommodating up to 64 TB of storage for long-term recording needs.

Outputs include dual HDMI (up to 8K) and VGA for live monitoring and playback. Remote access is supported via LTS Connect and DDNS, enabling versatile monitoring.

Built-in deep-learning analytics (VCA) offers smart features like human/vehicle detection, facial recognition, perimeter protection, and POS overlay.

  • DETAILS
  • SPECS
• 16 IP camera inputs, up to 32 MP recording
• H.265+/H.265/H.264+/H.264 compression—saves up to 75% storage
• 4 SATA bays, each up to 16 TB (64 TB total)
• Dual HDMI outputs, up to 8K resolution + VGA
• 16 PoE ports (802.3af/at) for camera power/data delivery
• Smart analytics: human/vehicle, face recognition, VCA, POS overlay & event search
• Remote access: LTS Connect, DDNS, web interface
• Legacy interface: CVBS output
• USB ports: Front (2× USB2.0), Rear (1× USB3.0) for backups
• eSATA & RS 232/485: Scalability & PTZ control
• Rack-mountable 1.5U chassis, 440 × 391 × 75 mm, 3.6 kg 
• Power: 100–240 VAC, ≤30 W (no HDD or PoE draw) 
• Operating Temp: –10 °C to +55 °C; humidity 10–90%
• Certifications: CE, CB, FCC, UKCA, REACH, WEEE; ONVIF-compliant
SKU - LTN8916D-P16N
Recorder Technology - IP / NVR
Recorder Case - 1.5U Case
Recorder Series - Platinum Series
Recorder Channel - 16-Channel
