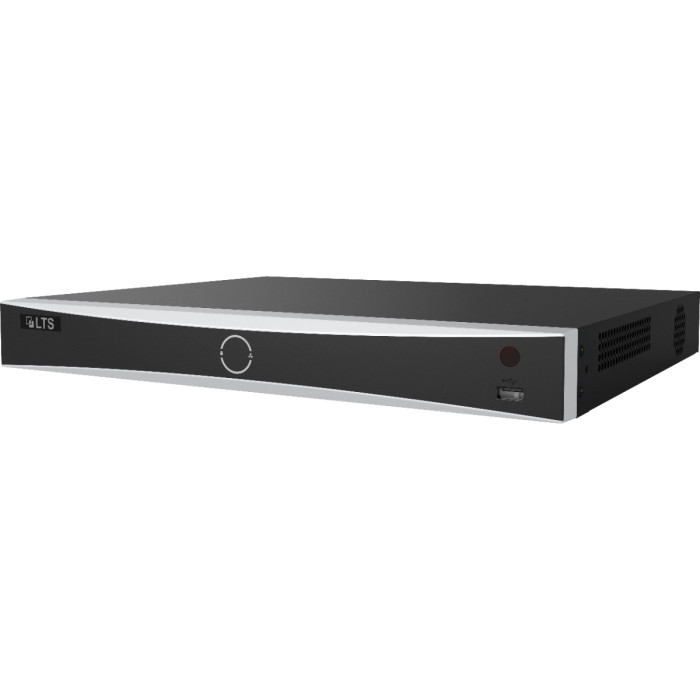

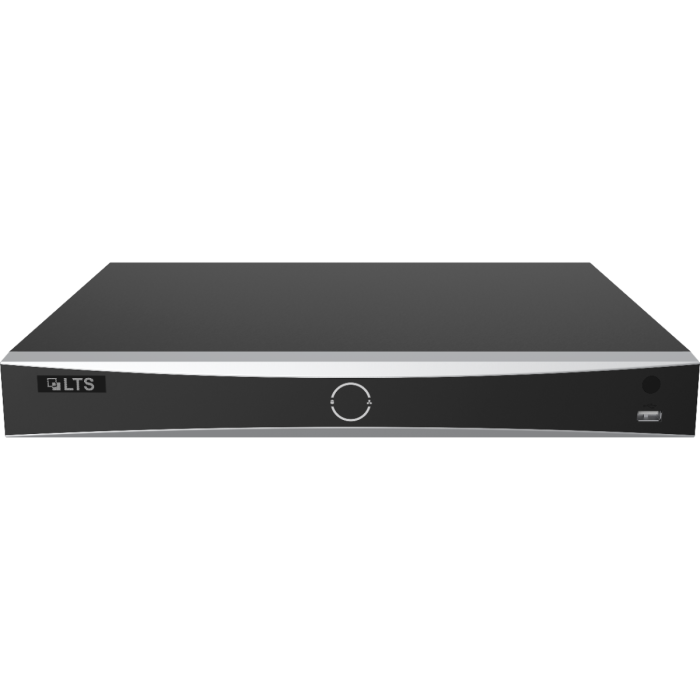

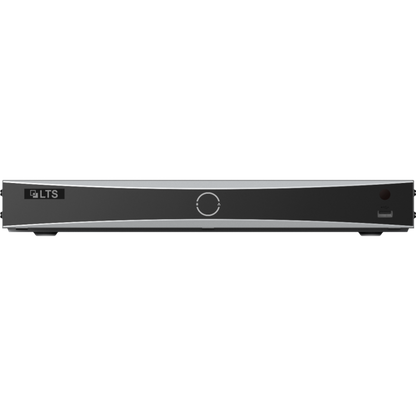

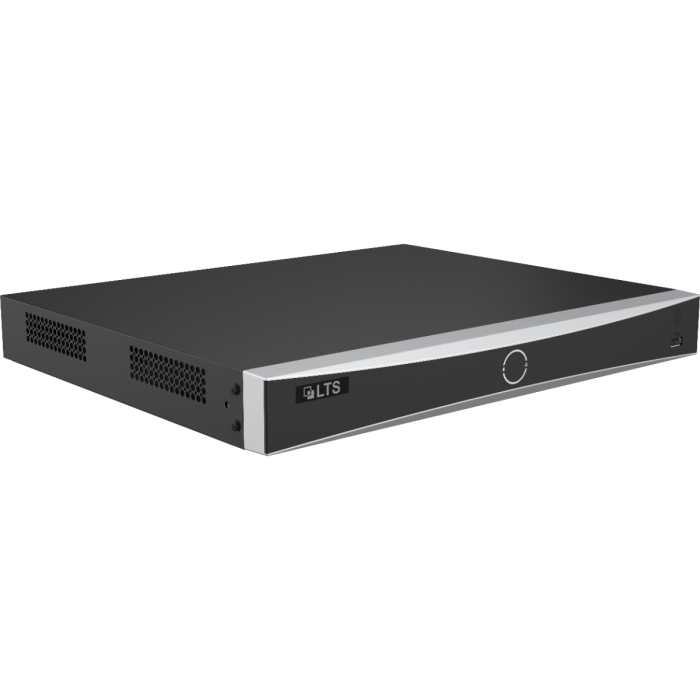

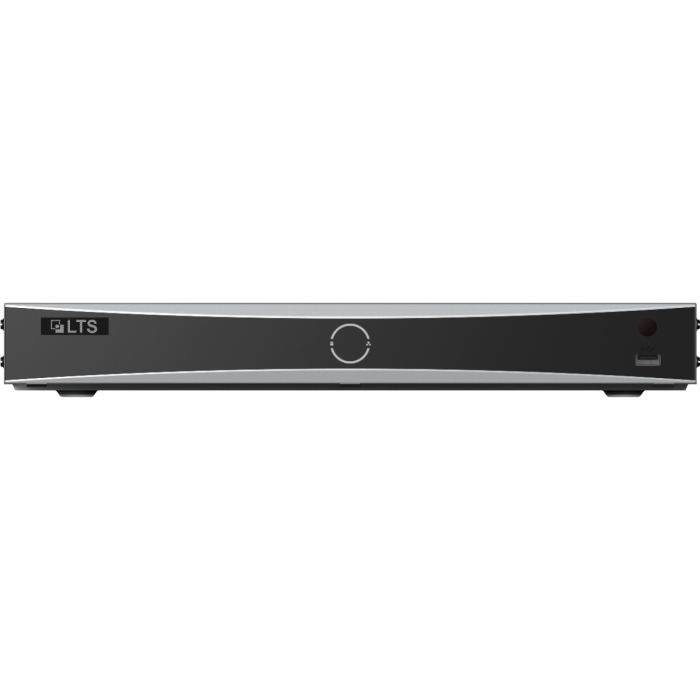

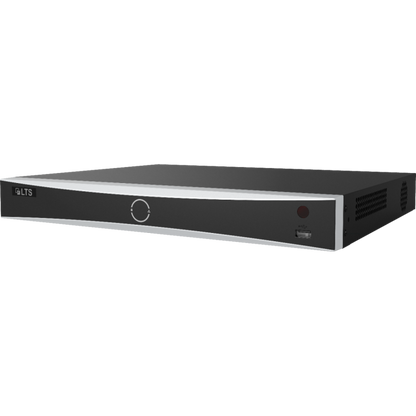

The LTS LTN8616D‑P16N is a powerhouse PoE NVR engineered for demanding surveillance setups. Featuring 16 PoE ports, it allows plug‑and‑play camera integration and supports ultra‑high 32 MP resolution, ideal for future-proof deployments.
Its efficient H.265+ compression saves up to 75% in storage, while dual HDMI (8K) and VGA outputs support high-fidelity multi-screen monitoring. Equipped with deep‑learning VCA (MD 2.0), it offers human/vehicle detection, facial recognition (up to 4 channels), smart event search, POS overlay, and direct analytics playback.
The unit supports two SATA drives (up to 14 TB each for ~28 TB total), delivers 16‑channel synchronous playback, and features LTS Connect/Direct Search for fast navigation and remote access. Packaged in a compact 1.5U rack/desktop chassis with low 30 W power draw, it’s a sleek yet potent solution for mid‑sized professional installations.
DETAILS
SPECS
• 16 PoE ports – Power & data over Ethernet
• Max 32 MP resolution & 256 Mbps bandwidth
• H.265+/H.265/H.264+ compression – Saves storage & bandwidth
• Outputs: Dual HDMI (up to 8K), VGA, CVBS
• AI Analytics (MD 2.0) – Human/Vehicle detection, facial recognition (4 ch), POS overlay, smart search
• Storage: 2 SATA (up to 14 TB each; 28 TB total)
• Playback: 16 ch simultaneous
• Remote Management: LTS Connect, DDNS, Direct Search
• Power Efficiency: ≤ 30 W (no HDD/PoE off)
• Build: Compact 385×317×52 mm, ~2.5 kg, rack-mountable 1.5U chassis
• Environment: Indoor, 10–55 °C, 10–90% humidity
• Certifications: CE, CB, REACH, WEEE, UKCA
• Durable design: Robust for long-term deployment
SKU - LTN8616D-P16N
Recorder Technology - IP / NVR
Recorder Case - 1.5U Case
Recorder Series - Platinum Series
Recorder Channel - 16-Channel
