LTS 32‑Channel Hybrid DVR – LTD8432M‑ST(S) (4×HDD, 8 MP)

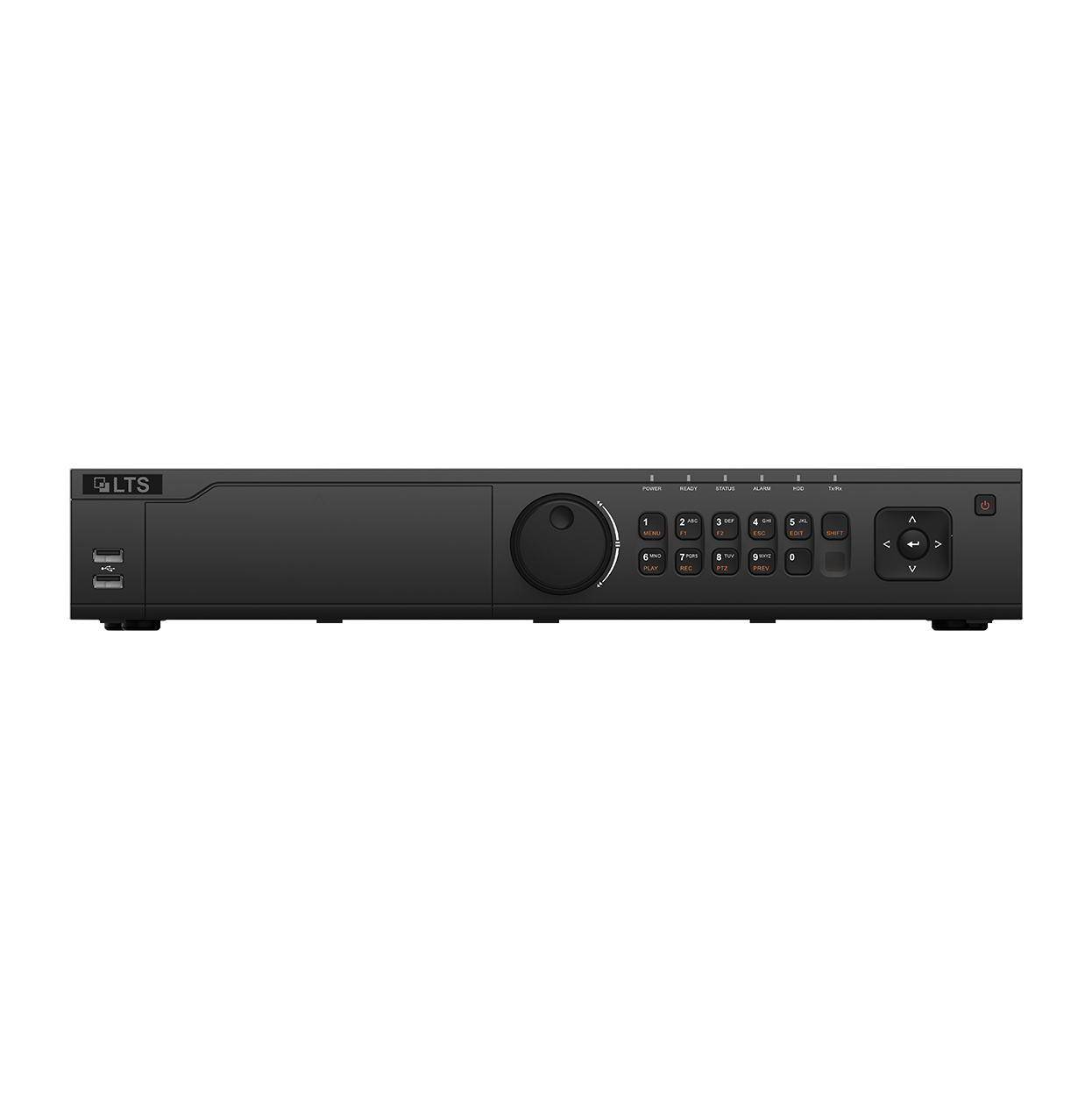

  • Front rack-view of LTS LTD8432M‑ST(S) 32‑channel hybrid DVR with 4 HDD bays
1 1
Brand: LTS
Part Number: LTD8432M-ST(S)
$1,762.73 USD
Shipping calculated at checkout.
4 interest-free installments, or from 440.68 $/mo with shopPay Check your purchasing power
Los gastos de envío se calculan en la pantalla de pago.

The LTS LTD8432M‑ST(S) is a top-tier Platinum-series hybrid DVR offering 32 analog (TVI/AHD/CVI/CVBS) and 32 IP camera inputs — totaling support for up to 64 channels. It records analog channels at up to 8 MP and IP camera streams up to 12 MP.

Built for large installations, it includes 4 SATA bays (up to 12 TB each for 48 TB total) plus eSATA, with robust RAID options (0/1/5/6/10).

Featuring high-performance H.265 Pro+ compression, it reduces storage by ~75%, and offers dual HDMI (with one supporting 4K) and VGA outputs for flexible monitoring.

Network connectivity is handled via dual 1 GbE ports, with seamless remote access via LTS Connect and DDNS support. Additionally, audio-over-coax, alarm I/O, POS overlay, smart search, and UL certification make it ideal for enterprise deployments.

  • DETAILS
  • SPECS
• 32 analog + 32 IP camera support for hybrid flexibility
• 8 MP TVI recording, IP input up to 12 MP resolution
• Storage: 4 SATA + eSATA support; 48 TB total; RAID 0/1/5/6/10
• Compression: H.265 Pro+ significantly reduces file sizes
• Display outputs: Dual HDMI (one 4K-capable), VGA, plus BNC
• Networking: Dual GigE ports, LTS Connect & DDNS
• Audio & Alarms: Coax audio, 4 in / 1 out RCA, 16 alarm inputs / 4 outputs
• Case & Compliance: 1.5U rackmount, UL-certified
• Form Factor: Dimensions ~445×400×71 mm; power ≤55 W (without HDD)
• Warranty: 3 year manufacturer warranty 
