LTS Pneumatic Time-Delay Exit Button – LTK‑TS‑14 (Green Mushroom)

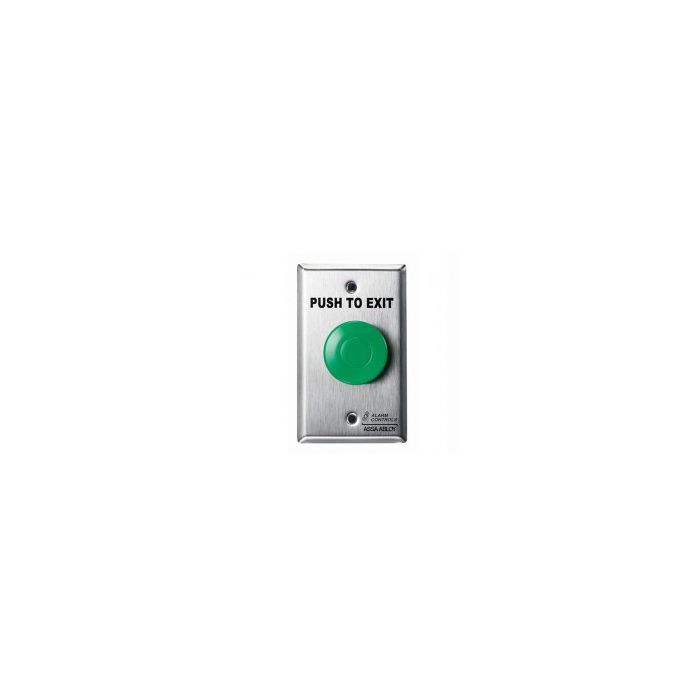

  • Green 1.5″ mushroom pneumatic exit button mounted on stainless steel wallplate
1 1
Brand: LTS
Part Number: LTK-TS-14
$391.74 USD
Shipping calculated at checkout.
4 interest-free installments, or from 97.94 $/mo with shopPay Check your purchasing power
Los gastos de envío se calculan en la pantalla de pago.

The LTS LTK‑TS‑14 is a premium pneumatic time-delay exit button designed for controlled egress in secured spaces. Featuring a 1.5″ green mushroom head with “Push to Exit” screen, it delivers a 2 to 60-second pneumatic delay, making it ideal for staggered exit security and timing control.

Built on a standard single-gang stainless steel wallplate, it meets UL294 exit device requirements and includes SPDT contacts rated 10 A @ 35 VDC, with a contact pair for normally-open and another for normally-closed operation. The pneumatic timer offers stable accuracy (±10%), and the device is rated for indoor environments between +15 °F to +120 °F (–9 °C to +49 °C).

  • DETAILS
  • SPECS
• Pneumatic timer adjustable from 2 – 60 seconds, with ±10% repeatability
• Mushroom button: 1.5″ green cap, labeled “Push to Exit”
• Contacts: 1× N/O + 1× N/C, 10 A @ 35 VDC
• UL294-listed, meets exit-device standards
• Operating range: +15 °F to +120 °F (–9 to +49 °C)
• Mount: Standard single-gang stainless steel plate
• Depth: 2¼″ behind panel for flush installation
