Securitron 16 A Power Supply – LTK‑AQS1216‑16F16R2 (12 VDC, 16 Fused Outputs)

Name: Securitron 16 A Power Supply – LTK‑AQS1216‑16F16R2 (12 VDC, 16 Fused Outputs)
Brand: LTS
SKU: LTK-AQS1216-16F16R2
Price: 622.77 USD
Availability: InStock

1 1

Brand: LTS

Part Number: LTK-AQS1216-16F16R2

$622.77 USD

Shipping calculated at checkout.

4 interest-free installments, or from 155.69 $/mo with shopPay Check your purchasing power

Los gastos de envío se calculan en la pantalla de pago.

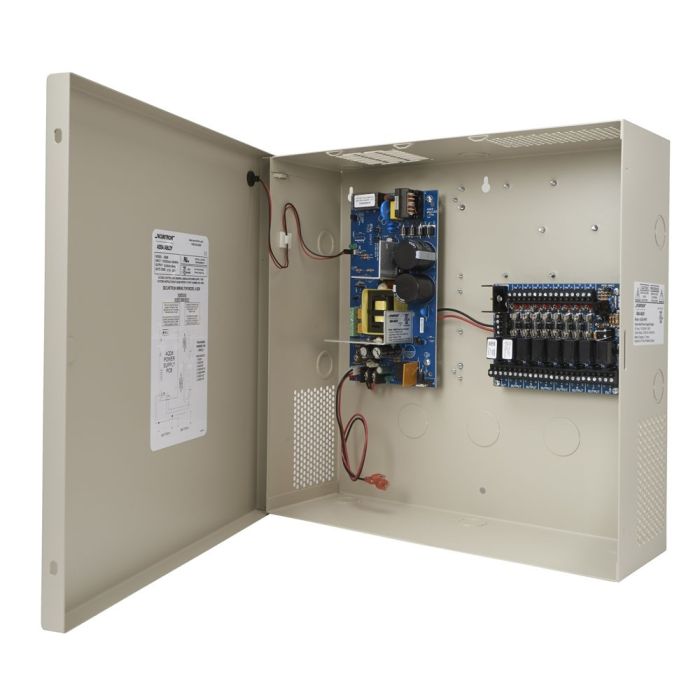

The LTK‑AQS1216‑16F16R2 is a high-capacity UL‑listed power supply delivering 16 A at 12 VDC, designed for large-scale access control installations. It features 16 independent fused outputs (2 A each) and includes a supervised fire-alarm interface for emergency power cut-off.

Encased in a lockable enclosure, this unit incorporates a dedicated battery charging circuit with low-voltage disconnect at 9 V and advanced protections against brown‑out, surge, reverse-battery, and thermal overload—with up to 91% efficiency for reduced electrical draw. It can accommodate up to 16 output relays for individual circuit control and supports installation with optional distribution boards.

DETAILS
SPECS

• Output: 12 VDC, 16 A continuous
• Outputs: 16 fused circuits (2 A each), expandable to 16 relays
• Battery support: Charger + low-voltage cutoff @ 9 V
• Fire interface: Supervised relay tied to alarm systems
• Protections: Brown out, over voltage, reverse battery, thermal auto-restart
• Efficiency: Up to 91%, UL listed to UL294/603 standards
• Enclosure: Lockable, rackmountable, professional-grade installation
• Compliance: RoHS, REACH; UL listed; supported with lifetime coverage
