LTS 8‑Channel Direct‑Search DVR – LTD8508D‑STC

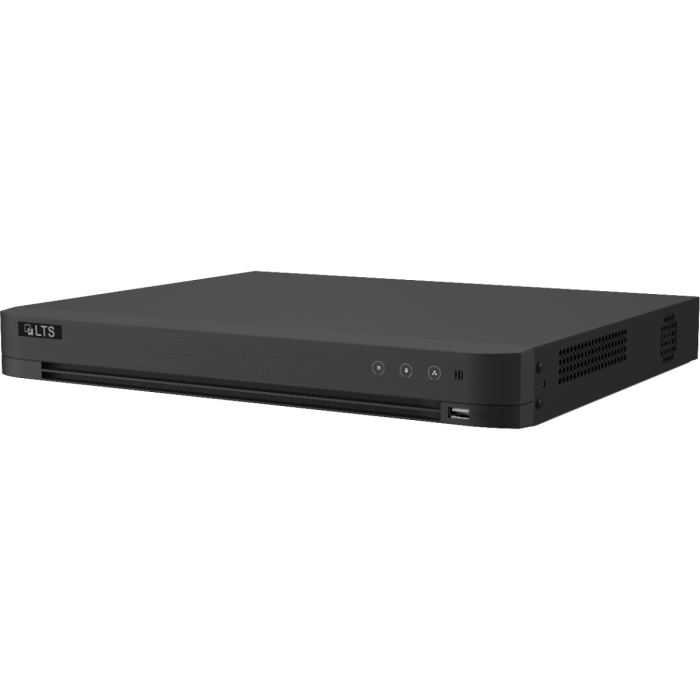

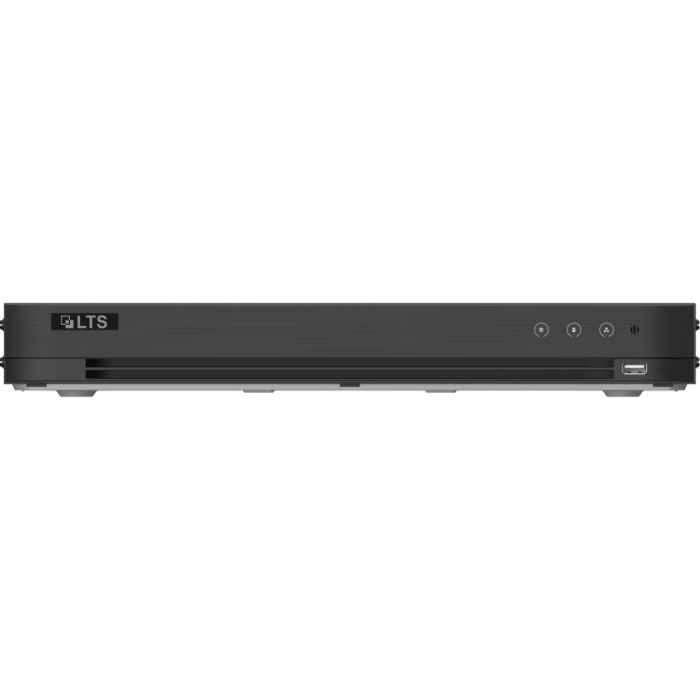

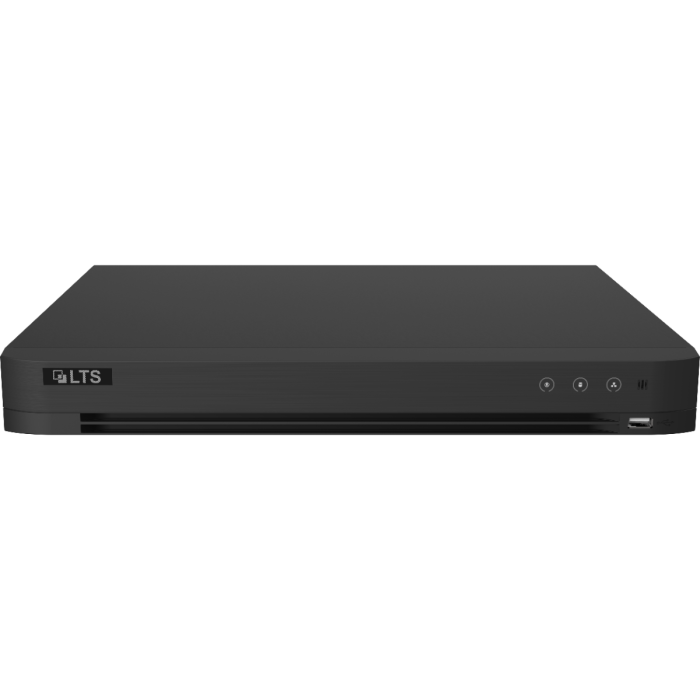

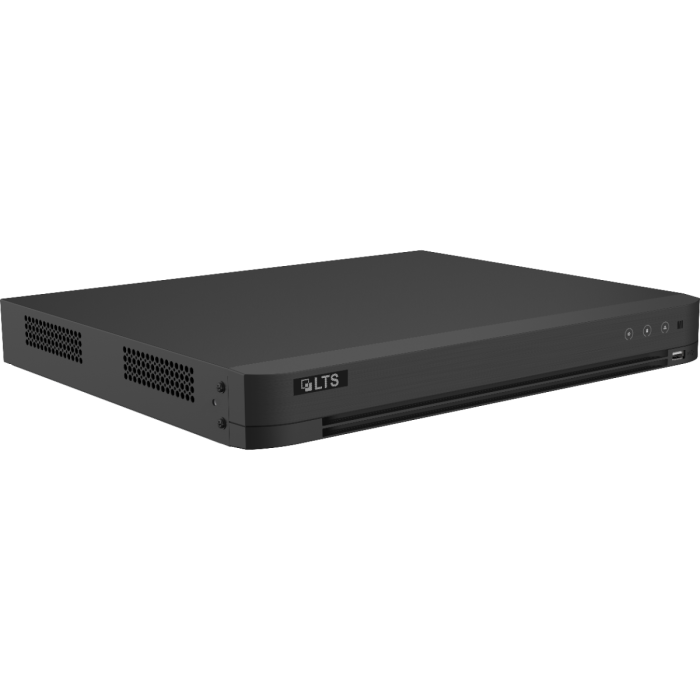

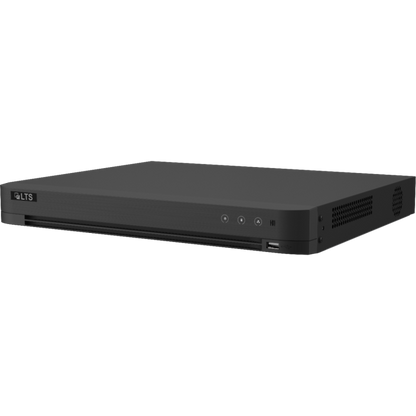

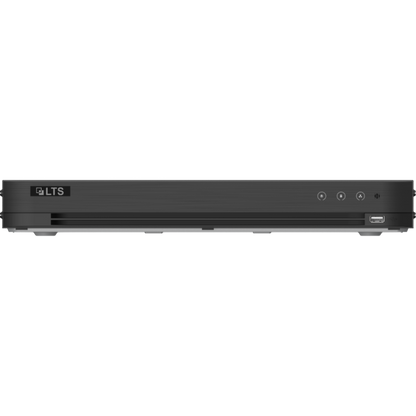

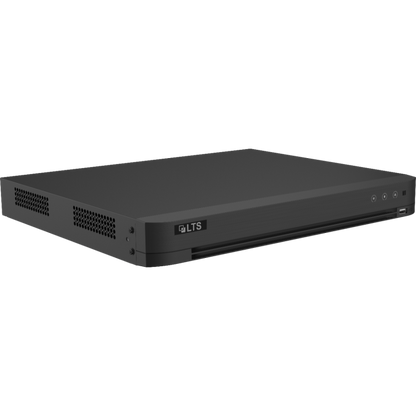

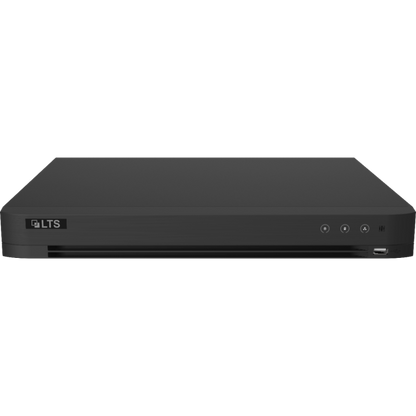

  • Front view of LTS LTD8508D‑STC 1U 8‑Channel Hybrid DVR with HDMI and VGA outputs
  • Front view of LTS LTD8508D‑STC 1U 8‑Channel Hybrid DVR with HDMI and VGA outputs
  • Front view of LTS LTD8508D‑STC 1U 8‑Channel Hybrid DVR with HDMI and VGA outputs
  • Front view of LTS LTD8508D‑STC 1U 8‑Channel Hybrid DVR with HDMI and VGA outputs
1 4
Brand: LTS
Part Number: LTD8508D-STC
$386.68 USD
Shipping calculated at checkout.
4 interest-free installments, or from 96.67 $/mo with shopPay Check your purchasing power
Frais d'expédition calculés à l'étape de paiement.

The LTS LTD8508D‑STC is a high-performance Platinum-series DVR featuring 8 analog HD-TVI channels plus support for up to 16 IP cameras (8 MP each). Capture footage in ultra-high 8 MP @ 8 fps or 5 MP @ 12 fps, with efficient H.265 Pro+ compression.

It includes advanced AI-based VCA: choose between 4‑channel facial recognition or 8‑channel perimeter protection, plus all‑channel Motion Detection 2.0. The standout 8‑channel Direct-Search technology lets users jump instantly to AI-tagged events.

This DVR supports 5-in-1 video input (HDTVI/AHD/CVI/CVBS/IP), HD-TVI two‑way audio, and includes smart playback to improve review efficiency. It also boasts dual-stream decoding and full-motion display of up to 24× 1080p channels .

The unit is housed in a compact 1U chassis with 1 SATA bay, supporting up to 10 TB HDD, and offers dual HDMI (4K/VGA) outputs. Network features include LTS Connect, DDNS, TCP/IP, ONVIF, and more. It supports two-way HD-TVI audio and requires just 12 V DC ≤ 24 W, operating between –10 °C to +55 °C.

  • DETAILS
  • SPECS
• Hybrid 8 analog + up to 16 IP camera inputs (each up to 8 MP)
• Recording: 8 MP @ 8 fps; 5 MP @ 12 fps; plus sub-streams
• AI VCA: 4 ch Face Recognition or 8 ch Perimeter Protection + Motion Detection on all channels
• Direct-Search playback on 8 channels for quick event review 
• 5 in 1 video input + HD-TVI Two-Way Audio support 
• Decoding: Up to 24× 1080p channels 
• Output: Dual HDMI (4K+1080p) and VGA simultaneous
• Storage: 1 × SATA (up to 10 TB)
• Compression: H.265 Pro+/Pro/H.264+/H.264
• Networking: LTS Connect, DDNS, TCP/IP, ONVIF
• Form Factor: 1U chassis, 320×240×48 mm; 12 V DC ≤ 24 W; –10 °C to +55 °C 

SKU - LTD8508D-STC
Recorder Technology - TVI DVR
Recorder Case - 1U Case
Recorder Series - Platinum Series
Recorder Channel - 8-Channel
